GraphQL — Common vulnerabilities & how to exploit them
Hello there! how you doin? , Bilal Rizwan here & I hope everyone is safe in this time of crisis and making complete use of your quarantined time to learn new things and expand your skill.
What is this post about ?
Many of you might have now seen GraphQL being used in a lot of web applications, some of you might have recognized right away that its graphql and probably tried searching for what you can do with it some might not have realized that the request is something called GraphQL request.
In this post I’ll try to highlight the common misconfigurations in the usage of GraphQL and how they can be exploited.

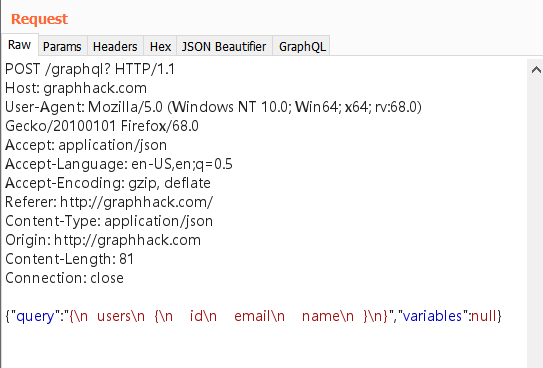

For those who don’t know what GraphQL is its request looks like this.
It has some curly brackets and \n characters. If you see something like that then most likely its GraphQL.
Lets first start off by understanding what GraphQL actually is knowing this will help up better form exploits.
What is GraphQL ?
Well Simply put GraphQL is an alternative API standard like REST and SOAP. It is basically a Query language for APIs used to interact with the APIs and to fetch data from the backend through APIs. It can do everything REST API can but in a much more efficient and controlled way.
GraphQL solves a lot of the problems faced while using REST like fetching more data than it should or the need to have a new endpoint for every call.
The following example should clear the difference between GraphQL and REST API.
In REST API we would typically be using /users/<id>endpoint to fetch user data. Secondly, there’s likely to be a /users/<id>/posts endpoint that returns all the posts for a user. The third endpoint will then be the /users/<id>/followers that returns a list of followers per user
In GraphQL however there is only one endpoint where we send a query which includes concrete data requirements the server then responds with the data requirements.
Suppose we want to fetch the user id’s from the system we can make a query for it like this

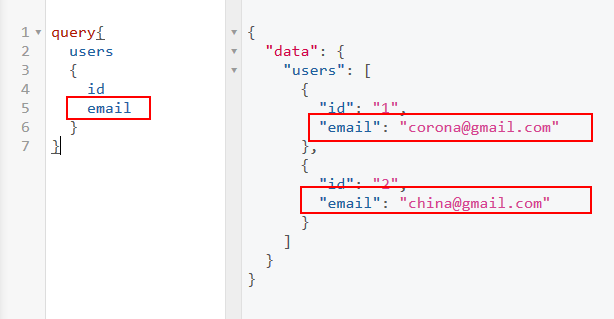

Now what if we also want user email’s? well unlike REST API we can just specify that in a new line on the same endpoint in the request is being sent to the server and its just that simple

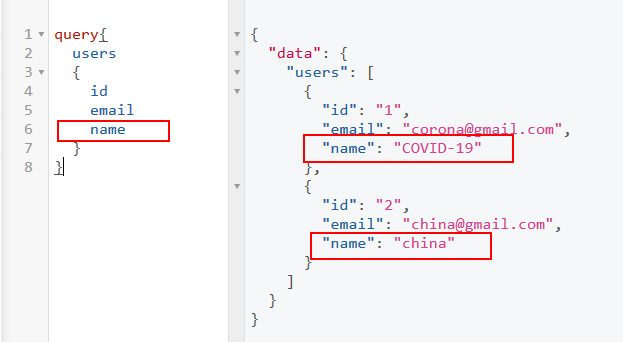

What if we also want the names ? I am sure you are able to now able to figure it out.
And that is the beautify of Graphql you can just specify what you want in a granular fashion.
Now that you know what GraphQL is all about lets move on.
Common Misconfigurations in GraphQL
Thing to understand here is that GraphQL like any other REST API is vulnerable to many attacks the same attacks the REST API might be prone to. I’ll list some of them below but the most interesting thing and the reason of making this entire post is the infamous Introspection query bug.
Introspection query: Simply put is a way to query the server for its GraphQL back-end schema and to get a complete documentation and list of what API calls are available in the back-end. This is originally meant to be used internally.
The introspection query should only be allowed internally and should not be allowed to the general public. If we can fetch the entire back-end API documentation and calls available on a server then that can be very dangerous is many cases what if we could get our hands on some API calls only meant to be used internally maybe we find a call to enable debugging or perhaps an API calls to delete users there is so much damage that can be done if entire back-end can be fetched.
Lets see how this is done.
To test a server for GraphQL introspection misconfiguration:
1) Intercept the HTTP request being sent to the server
2) Replace its post content / query with a generic introspection query to fetch the entire backend schema
3) Visualize the schema to gather juicy API calls.
4) Craft any potential GraphQL call you might find interesting and HACK away!
Suppose your target web app is making an GraphQL call you can simply change its query with a GraphQL Introspection query as follows.
Original API call

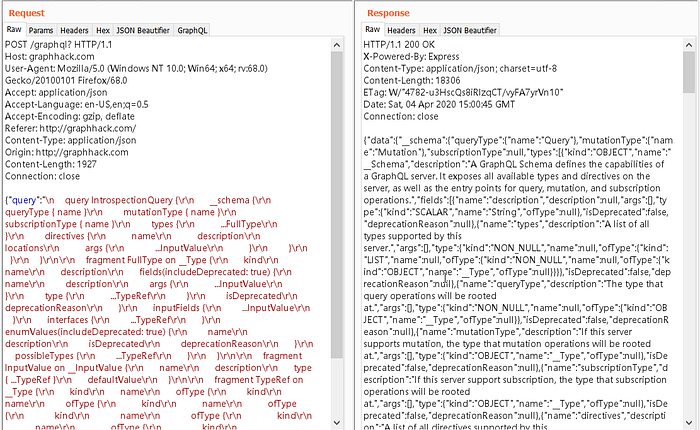

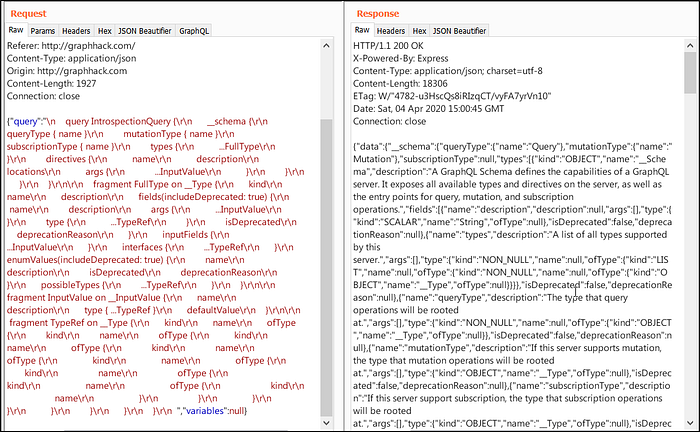

GraphQL Introspection Query Leaking back-end schema
Just replace the POST contents with the following query:
{"query":"\n query IntrospectionQuery {\r\n __schema {\r\n queryType { name }\r\n mutationType { name }\r\n subscriptionType { name }\r\n types {\r\n ...FullType\r\n }\r\n directives {\r\n name\r\n description\r\n locations\r\n args {\r\n ...InputValue\r\n }\r\n }\r\n }\r\n }\r\n\r\n fragment FullType on __Type {\r\n kind\r\n name\r\n description\r\n fields(includeDeprecated: true) {\r\n name\r\n description\r\n args {\r\n ...InputValue\r\n }\r\n type {\r\n ...TypeRef\r\n }\r\n isDeprecated\r\n deprecationReason\r\n }\r\n inputFields {\r\n ...InputValue\r\n }\r\n interfaces {\r\n ...TypeRef\r\n }\r\n enumValues(includeDeprecated: true) {\r\n name\r\n description\r\n isDeprecated\r\n deprecationReason\r\n }\r\n possibleTypes {\r\n ...TypeRef\r\n }\r\n }\r\n\r\n fragment InputValue on __InputValue {\r\n name\r\n description\r\n type { ...TypeRef }\r\n defaultValue\r\n }\r\n\r\n fragment TypeRef on __Type {\r\n kind\r\n name\r\n ofType {\r\n kind\r\n name\r\n ofType {\r\n kind\r\n name\r\n ofType {\r\n kind\r\n name\r\n ofType {\r\n kind\r\n name\r\n ofType {\r\n kind\r\n name\r\n ofType {\r\n kind\r\n name\r\n ofType {\r\n kind\r\n name\r\n }\r\n }\r\n }\r\n }\r\n }\r\n }\r\n }\r\n }\r\n ","variables":null}Now when you do this The response might be quite big and hard to comprehend. The best way to understand the schema is to visualize it. That can be done by copying the entire response body and using this website https://apis.guru/graphql-voyager/ click on the Change schema button and go in the introspection tab then paste the introspection query there

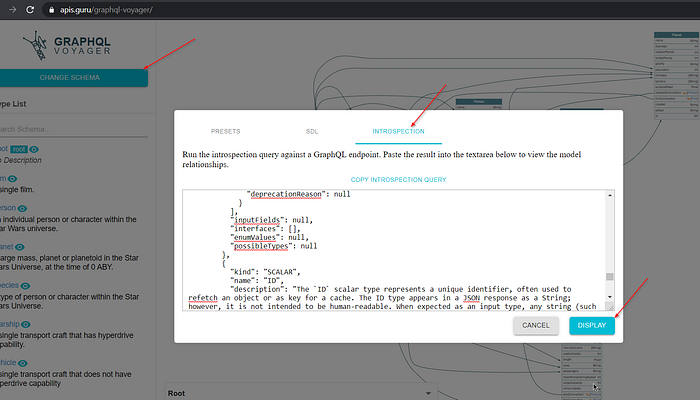

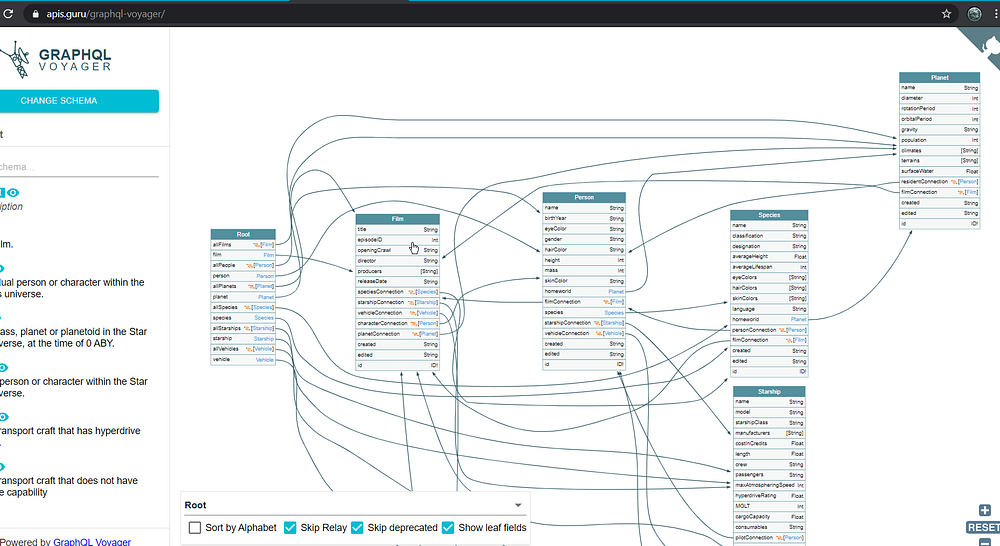

after you paste the schema in there click Display and voila you’ll be presented with a visualization of the entire back-end and API calls available
Now since we have the entire API calls list we can go over it and easily try to figure out if there are any sensitive API calls that can be abused. This is the most prevalent type of bug found in GraphQL back-ends which can lead to quite critical scenarios.
I kinda feel that up till this point you might not have completely synced in the true impact of this bug so lets take an example For those of you who already know how to look at a graphql schema and craft graphQL queries reading any further will not be quite useful but for people who have gotten the schema visualized it spotted something sensitive looking and want to exploit it or just want to understand the true impact of introspection then read on ahead.
Learning GraphQL Query formation:
GraphQL has 3 basic type of queries or componentsQueries
Similar to GET request in REST API, queries are used to fetch data.Mutation
Used to create, edit and delete data.Subscriptions
Used for real time communication. We won’t be focusing on this.
All of the graphQL queries are written in a json format with line breaks and curly brackets.
Lets take an example and use a Web application which has 2 Features
1) List users
2) Add Users
We will then use introspection query to find bugs in the application and this is something commonly found in web Apps.

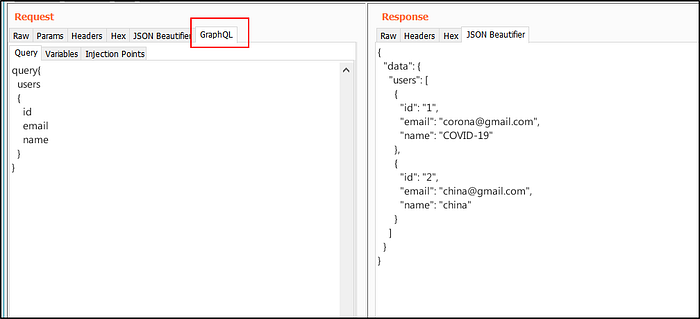

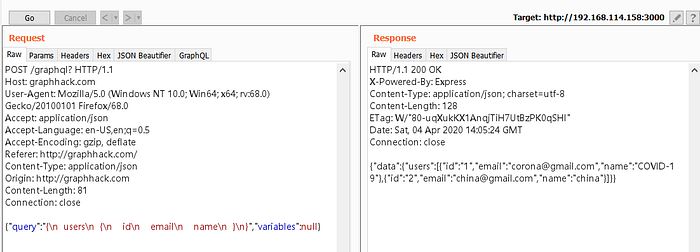

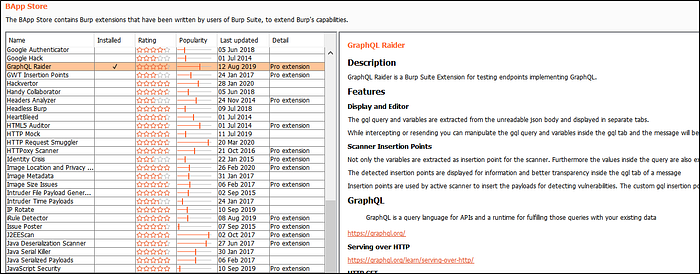

The picture above is what you would normally be seeing now to make this better you can use a burp plugin like JSON Beautifier or better yet one more specific for GraphQL known as GraphQL Raider. After you install it you’ll have a tab just like JSON beautifer where ever GraphQL
Now the above can be viewed in a much much better way
From the able images you should be able to easily understand the graphQL query structure
query{
<FUNCTION NAME>
{
<COMPONENT>
<COMPONENT>
}
}Simple as that. That’s how Query works. Thats the first function the website provides

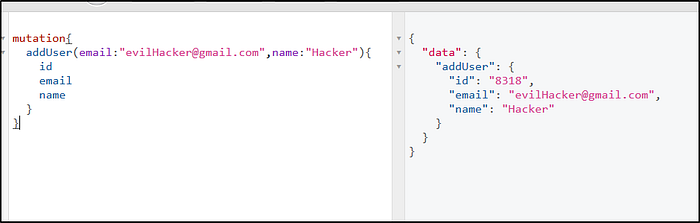

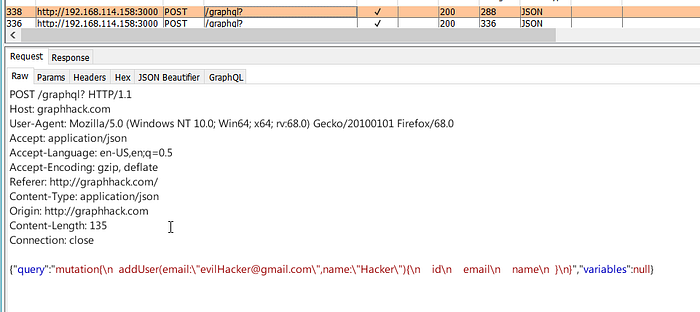

The App also lets us Add users lets try that out.
Now while we are able to view these calls through burp and generate them by clicking a button on the front end how do we find something more juicy ?
Well lets try introspection query.

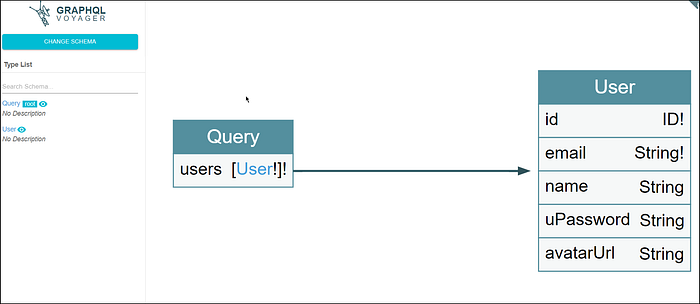

Using Introspection query copy the response data and paste it in to voyager
Since this is a test App the schema is very small but look the image closely this is a very core and basic example how how you can find sensitive stuff using introspection as you can see in the picture the users function has many fields some that we are already familiar with such as id, email, name but wait a min… what is this uPassword. Lets try to fetch it.

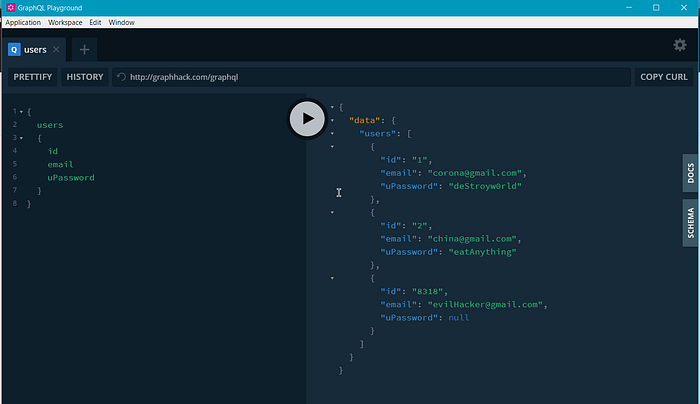

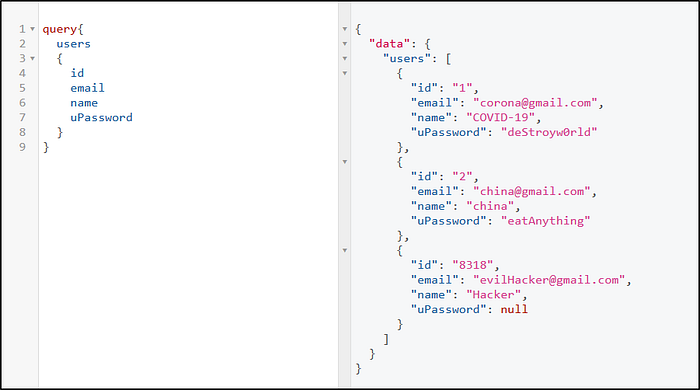

WOW!! we just fetched the passwords from the back-end. Why were we able to do this ? because in the backend there was a passwords field and we could use that in the graphql call this was only possible through the introspection.
— — — — — —
Now there is a small problem with the online graphQL visualization. It does not show mutations, did you spot that ? well then you have a keen eye. I for one did not spot that quickly it took a long time for me to know that and I am wondering how many bugs did I let pass . Sad nothing that can be done about that
The question now is how do we list the complete schema with the mutations ?Well I did some googling and found this
The graphQL playground download here

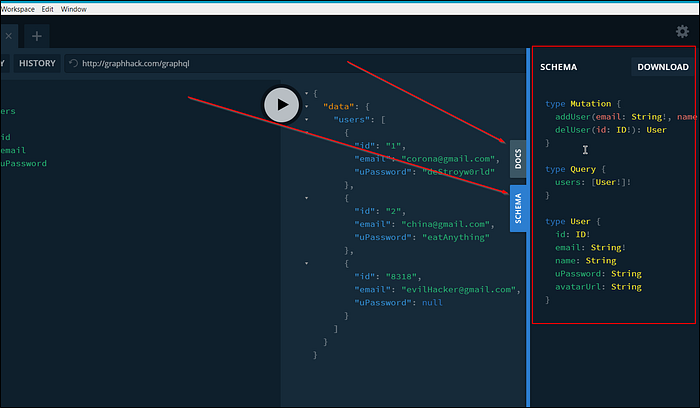

Now here is the great thing about the graphql Playground it actually utilizes the introspection query and makes a documentation out of it for you.
All you have to do is just download the Application paste in the URL of the graphql endpoint along with any cookies you have and voila!

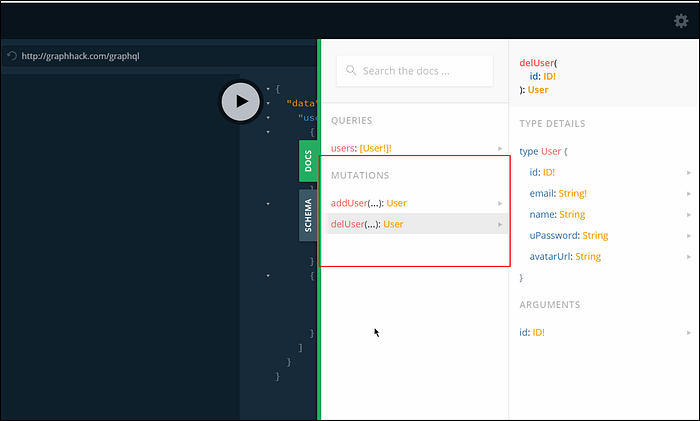

To view the mutations along with parameters Click on docs on the left side > Mutations and then you will be able to view the mutation along with its parameters. In the following function we can see the function addUser & delUser and we can see the parameters id,email,name,uPassword,avatarUrl You can simply use the knowledge above to craft a query with this

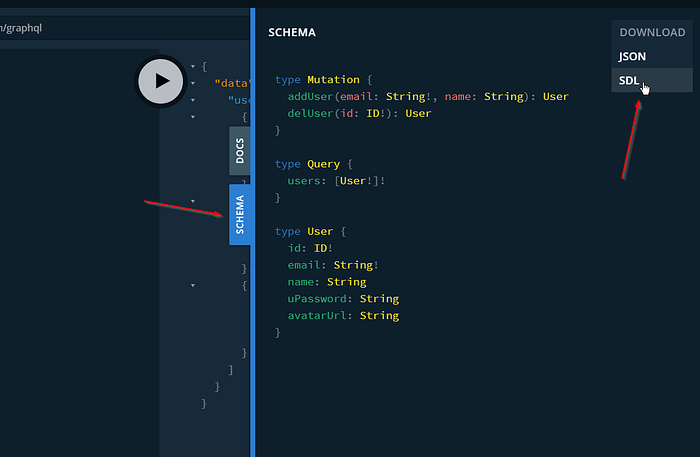

but I’d like to visualize this also. So what you will do now is click on the Docs tab and download the schema in SDL format
Once you have the schema head over to https://app.graphqleditor.com/
Sign in and navigate to “My Projects” add a new project

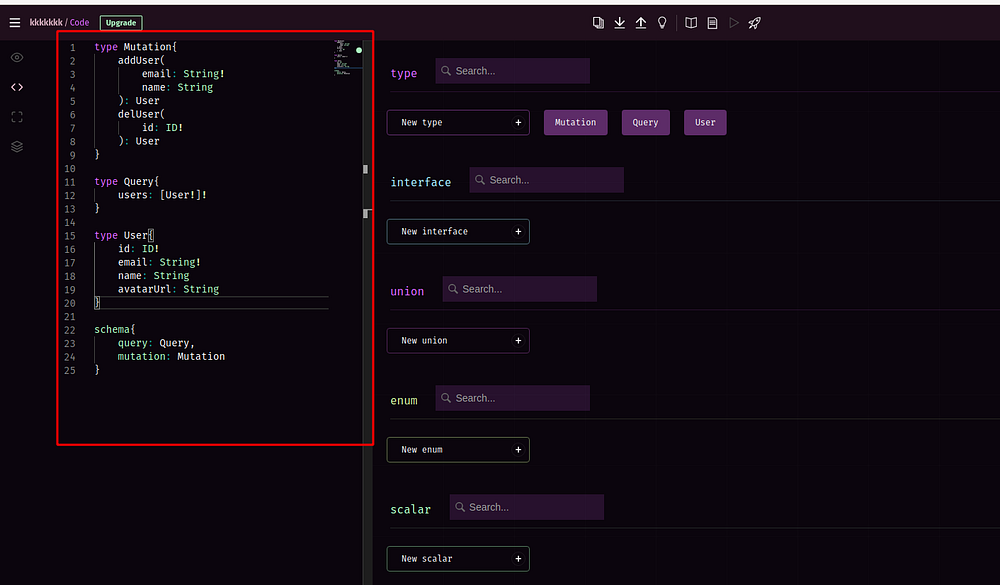

Add a name to your project and then paste the schema as shown
Or you can also upload the schema.graphql sdl file that you downloaded using graphql-playground by clicking the upload button on top

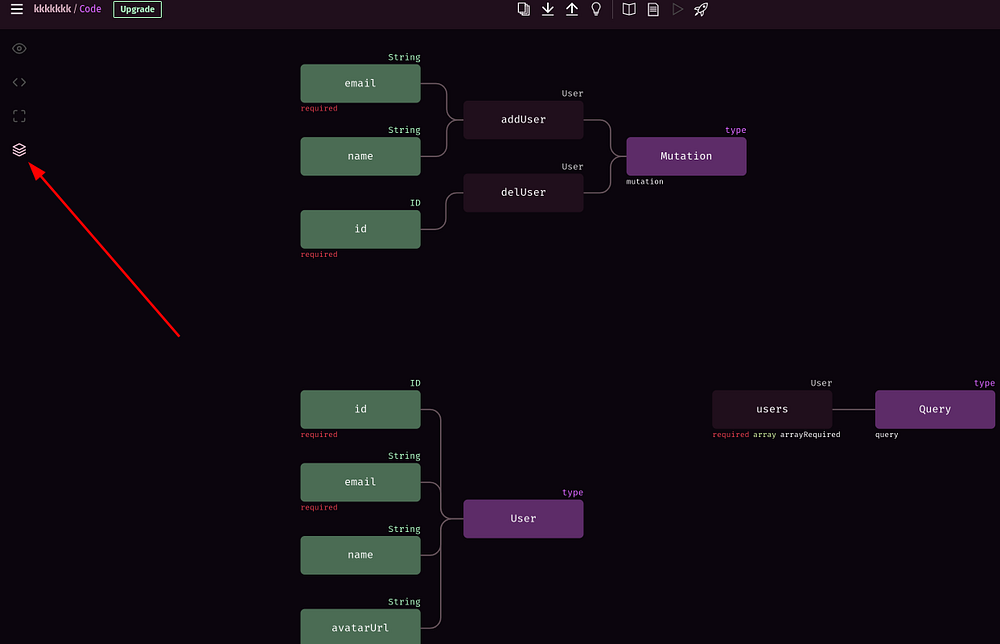

After the schema has been uploaded click on the last icon in the left menu.
Now would you look at that Beautiful isn’t it ?
Alright viewing the mutation part we see another function not available on the front end the delUser function and it even shows that it takes a single argument of ID lets try it out.
Lets delete user 1.

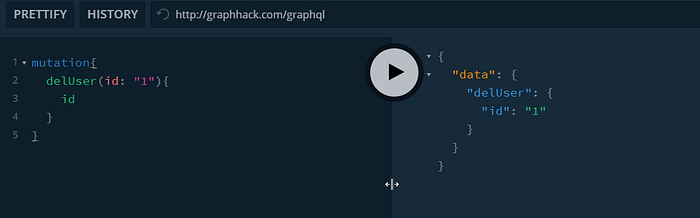

Passing the argument in like this by utilizing the visualization

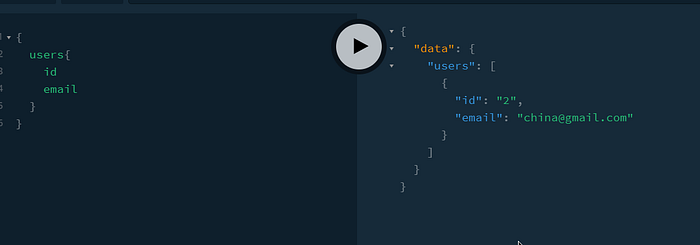

Simple isn’t it ? If not then try to read the mutation part given above again and I am sure you will get it. After running the delUser query lets list the users again.
And as we can see the user 1 has been deleted.
This is just a simple example of the things that can be found using Introspection
Bonus: How to add cookies to graphql-playground
Alot of your requests will require you to set cookies and thought the idea of using burp to craft your requests after you have found and visualized the schema seems nice its more convenient to use graphql-playground it helps in many ways. In most cases you’ll require cookies to even grab the schema and perform the introspection.
Sadly there is no way to set cookies in graphql-playground in the Http-Header tab you can set only custom header but not “Cookie” header its restricted by the developers. But there is always a hack around these restrictions.
To set your cookies using graphql and also monitor the requests I suggest you redirect all your graphql traffic from burpsuite. To do so first you need to setup a new listener that redirects all your incoming traffic from a specific port on loacalhost to your target.

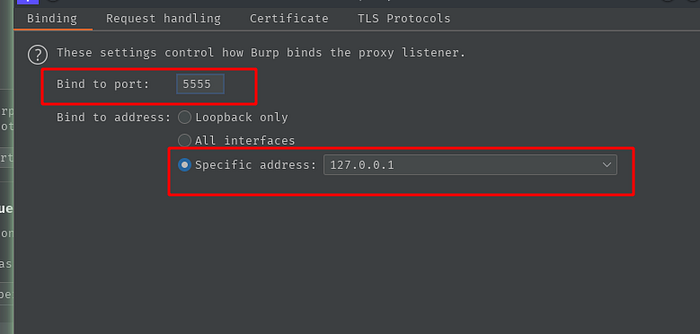

e.g: Imagine your traffic is going to https://example.com/graphql you can simply go to burp > proxy> options > Under Listeners click Add > add in any port
Then click on Request handling and add the target host/domain to Redirect to Host: and click on Force use of TLS it will automagically fill in the port 443 > click ok

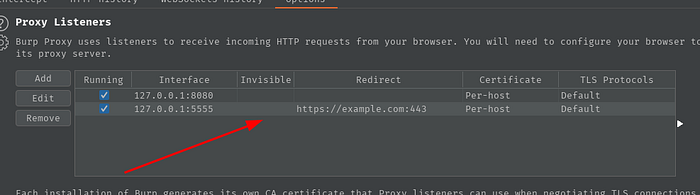

a new listener will be added like shown
Ok cook now simply head-over to your Graphql-playground and you’ll now be sending all your requests to http://localhost:5555/graphql-endpoint rather then the target. Burp will catch the request and redirect it to the target host.
Now lets try to add a custom header in the request cause you might need to do that in your testing quite often.
Just click on HTTP Headers and add your custom header in a json format
Simple as that. But the problem here is that you can not add the “cookie” header the developers have restricted that so to work around this you’ll have to add a dummy header and then using a Match and replace rule in burp you’ll have to substitute that with the Cookie header.
To do Cookie header you’ll need to first add a dummy header and call it Cookiex give it the values as desired.
Then headover to burp go to Proxy Tab > options > Match and Replace > Add and in type select Request header > match “Cookiex” and replace it with Cookie click Ok and you are all set to go.

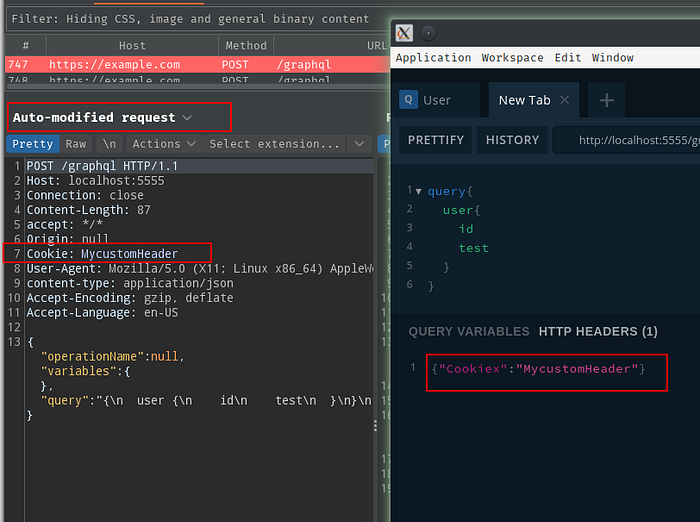

Now when you send the request with “Cookiex” header you’ll notice that the actual request gets sent with a cookie header.
Other bugs in Graphql:
Well just like any other REST API GraphQL is vulnerable to all the API bugs out there for example
1) IDORs
Where ever you see ID’s you know what to do this bug is not related to GraphQL but is an Authorization bug
2) Bruteforce
See an OTP ? or MFA code check for rate limit
3) SQL injection
Yes you read it right, GraphQL does not mean that app don’t have the basic bugs so always check for it. But I’ve noticed alot of the GraphQL APIs are now connected to MongoDB so you need to familiarize your self NO SQL injection. ( yes that’s a thing )
4) CSRF
5) Nested Graphql queries for DOS (https://voidsec.com/graphql-security-overview-and-testing-tips/)
and any other API bug that you can image exists in GraphQL.
Using this knowledge I was able to view user PII in a web app that only admins were allowed to view and I scored a small bounty with it just a few hundred $
Well thats about it, if there is anything I missed or typed wrong feel free to hit me up on
